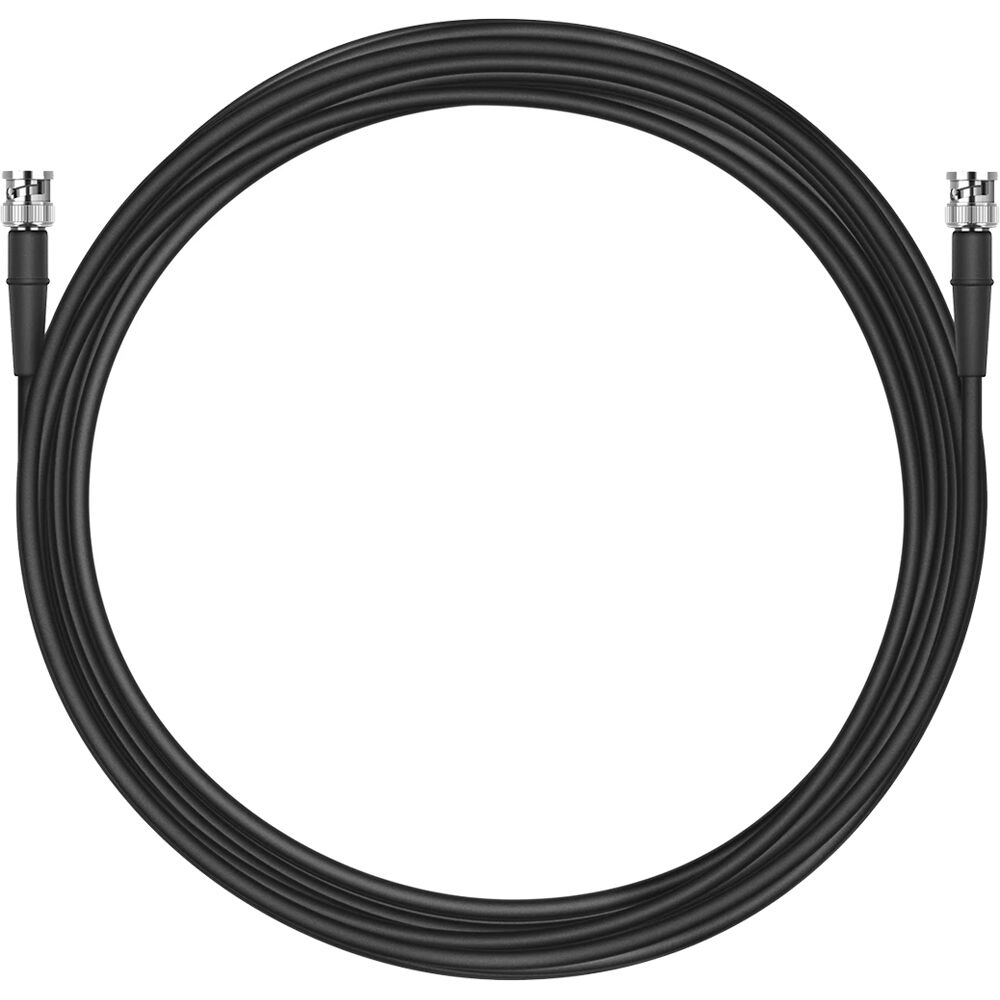

BNC cable for connecting remote antennas
- GZL RG 8x: Low damping coaxialcable with BNC connector
Specifications :
- GZL RG 8x
- Impedance : 50 Ohm
- Cable length : 10 m
- Max operating freaquency (MHz) : 4000
- Conductor DCR (Ohm/100m) : <= 3.2
- Capacitance (pF/m) : 82
- Max attenuation (dB/100m @ 20°C) : 400 MHz: 16.8 / 800 MHz: 25.5
- Diameter : 6.8 mm
- Temperature Range : -40 to 70 °C
- Connector : BNC
Part no: 700164
